W 750 / W 752 Series

Category: Tags: ,
Profile width 70 mm
Number of chambers 5
Profile class W 752 A Class (TS EN 12608-1) / RAL 716-GZ
W 750 B Class (TS EN 12608-1)
Seal Type External / Internal double seal system
Seal Type and Color TPE – Gray / Black
Glass thickness (mm) 4, 20, 24, 28, 32, 40, 42 mm
The thermal insulation Uf : 1,30 W/m²K

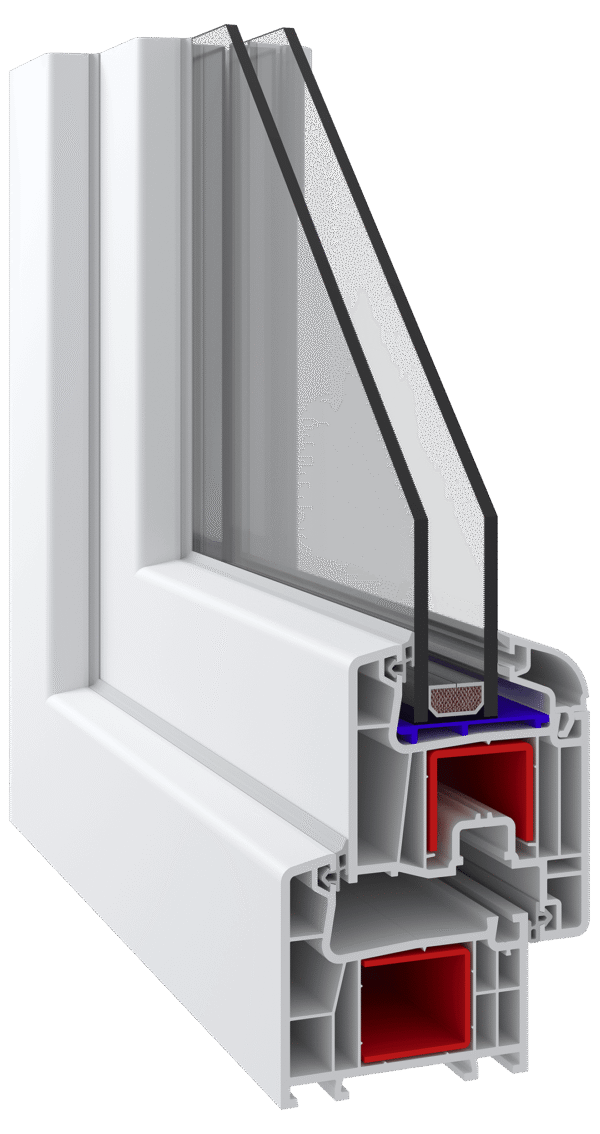

KILKIN UPVC’s advanced 70mm profile series delivers exceptional strength, insulation, and aesthetics. Featuring a 5-chamber design, it ensures outstanding thermal efficiency, sound insulation, and water resistance. The elastic grey and black sealing system provides maximum airtightness without staining the profile surface.

Engineered for high-rise buildings, this profile also supports standard and offset sash styles and a wide range of laminated colors. It accommodates glazing options from 20mm to 42mm, supporting single, double, or triple glass panels. The integrated sill frame enhances interior aesthetics and frame-to-wall connection.
